Lighting parts

Vydyne® PA66 compounds have been specified in electrical and electronic applications for many years. Plastic components in these applications are subject to exacting regulatory requirements, including fire safety standards. They also must demonstrate superior mechanical and thermal performance while maintaining dimensional integrity. The performance, quality and consistency of our products make the difference in your applications.

Markets we serve

Lighting parts

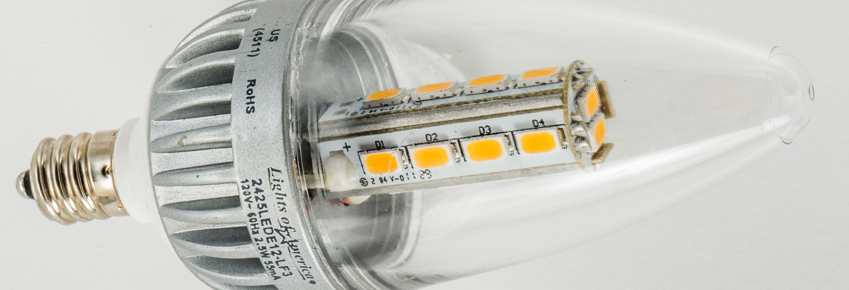

The lighting industry around the world is transforming itself with increasing focus on energy efficiency and intelligent controls. As of 2012, the Energy Independence and Security Act requires all light bulbs sold in the U.S. to reduce energy consumption by at least 25 percent. The regulatory changes have prompted manufacturers to respond with modern component design upgrades using materials that comply with the new performance and sustainability standards.

PA66 is used in electrical lighting components such as connectors and bobbins. Connectors, as their name implies, link a lighting fixture to the rest of electrical circuit. Connectors are required to have excellent strength, fatigue toughness, retain key physical and mechanical properties at elevated temperatures (RTI), and be fire-safe during their functional life. Vydyne 21SPF with its excellent balance of properties has been successfully deployed within this application.

Coil bobbins are permanent containers for the wire windings, acting to form the shape of the coil. They serve as passive electrical components in inductors, chokes, transformers and relays. Coil bobbins must possess high strength, electrical resistance (insulation), thermal resistance (RTI) and chemical resistance. Vydyne R533H, a glass-reinforced PA66, has been found useful in bobbin applications due to its superior strength retention at elevated temperatures typically associated with high-intensity LED and fluorescent bulbs.


Highlighted products

Vydyne® 909 BK

Vydyne® 909 series are 25% glass fiber reinforced, ignition resistant nylon 6,6 resins with UL 94V-0 flammability ratings. Lubricated for machine feed and easy mold release. Vydyne® 909 series resins are modified with halogenated and other flame retardant additives to provide users with a product that meets Underwriters Laboratories (UL) 94V-0 flammability classifications down to thicknesses of 0.03 inches and 95-5VA thicknesses down to 0.06 inches. Also available as Vydyne® 909.

View Product

Vydyne® 909

Vydyne® 909 series are 25% glass fiber reinforced, ignition resistant nylon 6,6 resins with UL 94V-0 flammability ratings. Lubricated for machine feed and easy mold release. Vydyne® 909 series resins are modified with halogenated and other flame retardant additives to provide users with a product that meets Underwriters Laboratories (UL) 94V-0 flammability classifications down to thicknesses of 0.03 inches and 95-5VA thicknesses down to 0.06 inches. Also available in black as Vydyne® 909 BK.

View Product

Vydyne® 21SPF1

Vydyne® 21SPF1 is a general purpose nylon 6,6 resin. It is designed principally for injection molding fabrication. This grades offer a well-balanced combination of engineering properties characterized by high strength; rigidity; good toughness; high melt point; good surface lubricity; abrasion resistance; and resistance to many chemicals, solvents, gasoline and machine and motor oils. Also available as Vydyne® 21SPF and Vydyne® 21SPF BLK.

View Product

Vydyne® 21SPF BLK

Vydyne® 21SPF BLK is a general purpose nylon 6,6 resin. It is designed principally for injection molding fabrication. This grades offer a well-balanced combination of engineering properties characterized by high strength; rigidity; good toughness; high melt point; good surface lubricity; abrasion resistance; and resistance to many chemicals, solvents, gasoline and machine and motor oils. Also available as Vydyne® 21SPF and Vydyne® 21SPF1.

View Product

Vydyne® 21SPF

Vydyne® 21SPF is a general purpose nylon 6,6 resin. It is designed principally for injection molding fabrication. This grades offer a well-balanced combination of engineering properties characterized by high strength; rigidity; good toughness; high melt point; good surface lubricity; abrasion resistance; and resistance to many chemicals, solvents, gasoline and machine and motor oils. Also available as Vydyne® 21SPF1 and Vydyne® 21SPF BLK.

View Product

Vydyne® 21SPC1

Vydyne® 21SPC1 is a general purpose nylon 6,6 resin available in natural color. It is designed principally for injection molding fabrication. This resin offers a well balanced combination of engineering properties characterized by high strength, rigidity, good toughness, high melt point, good surface lubricity, abrasion resistance and resistance to many chemicals, solvents, gasoline and machine and motor oils. Also available as Vydyne® 21SPC.

View Product
